NA1000MS Fixed Hydrogen Leak Monitoring System
Multi-channel fixed hydrogen concentration monitoring and alarm control for safer hydrogen-cooled equipment and industrial hydrogen applications.
Overview
The NA1000MS is a fixed multi-channel hydrogen leak monitoring system built for centralized hydrogen concentration control and alarm management. It is composed of the NA1000MR multi-channel alarm controller and the NA1000DII hydrogen monitoring transmitter. The system is designed to monitor hydrogen concentration within the lower explosive limit range in hydrogen-cooled generator units and other fixed hydrogen operating points, while displaying real-time readings and alarm status on a large color LCD.
Key Applications
Hydrogen-cooled generators
Generator neutral points
Steam and excitation end oil return systems
Internal cooling water tanks
Hydrogen production and transfer points
Centralized multi-point hydrogen monitoring
Problems It Solves
Monitors hydrogen concentration across multiple fixed points from one central control system
Helps operators detect and respond early when hydrogen concentration approaches preset alarm values
Improves safety oversight in hydrogen-cooled generator units and other fixed hydrogen operating areas
Supports centralized alarm management where portable inspection alone is not enough
Key Features

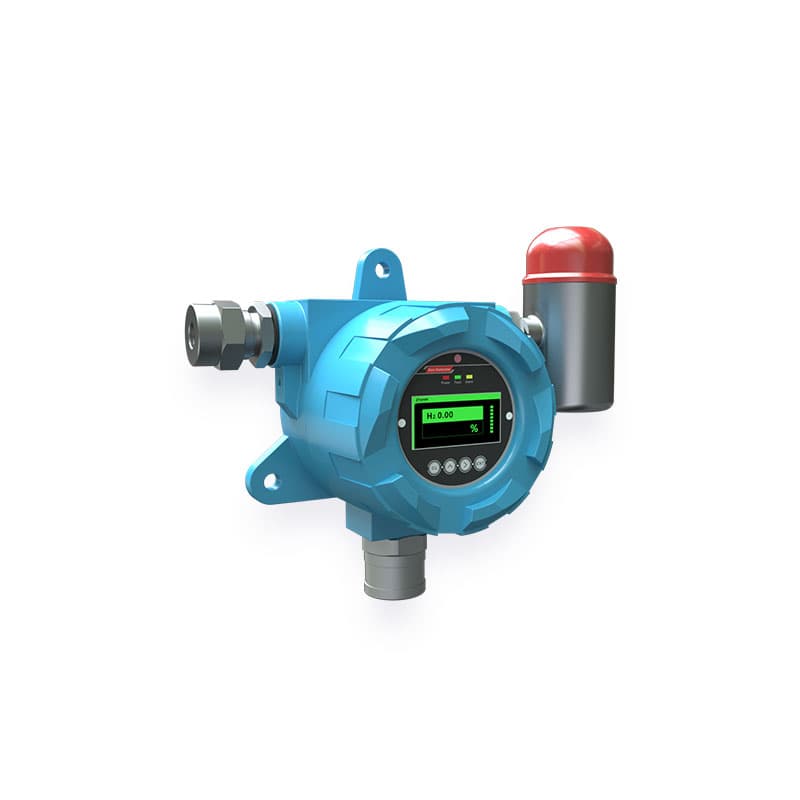

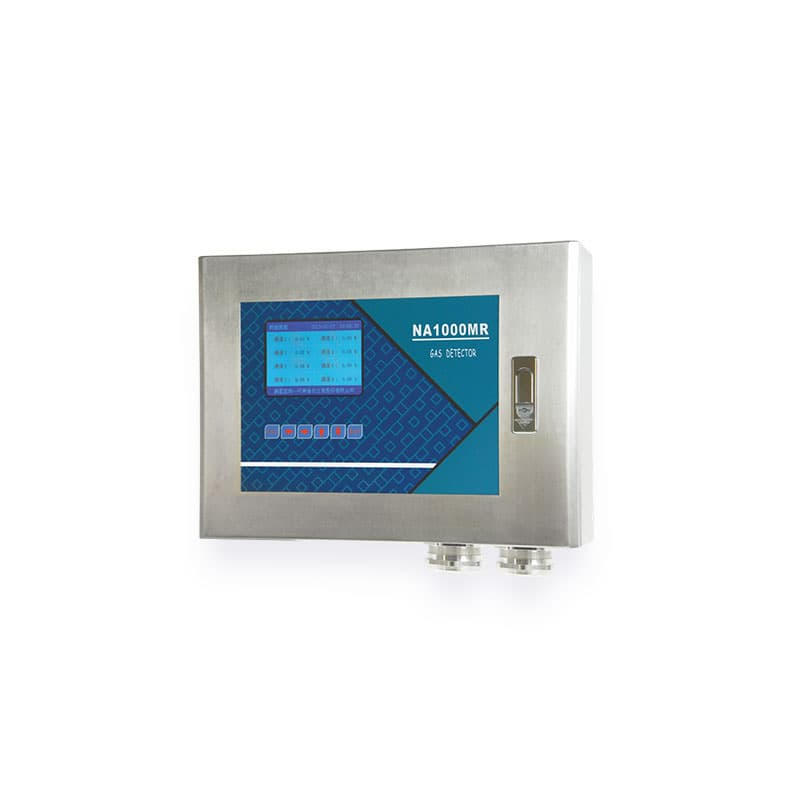

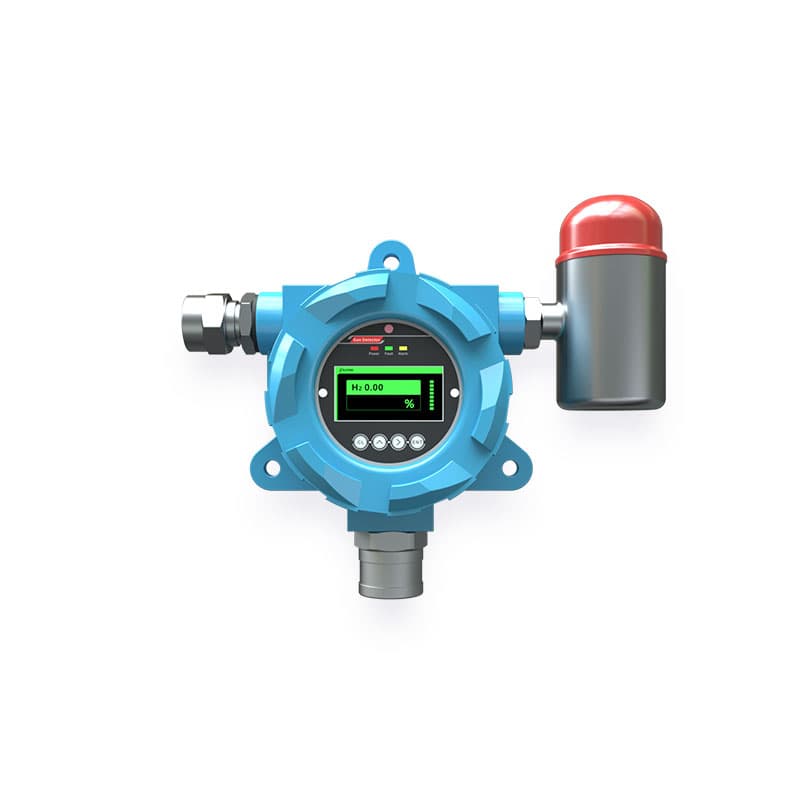

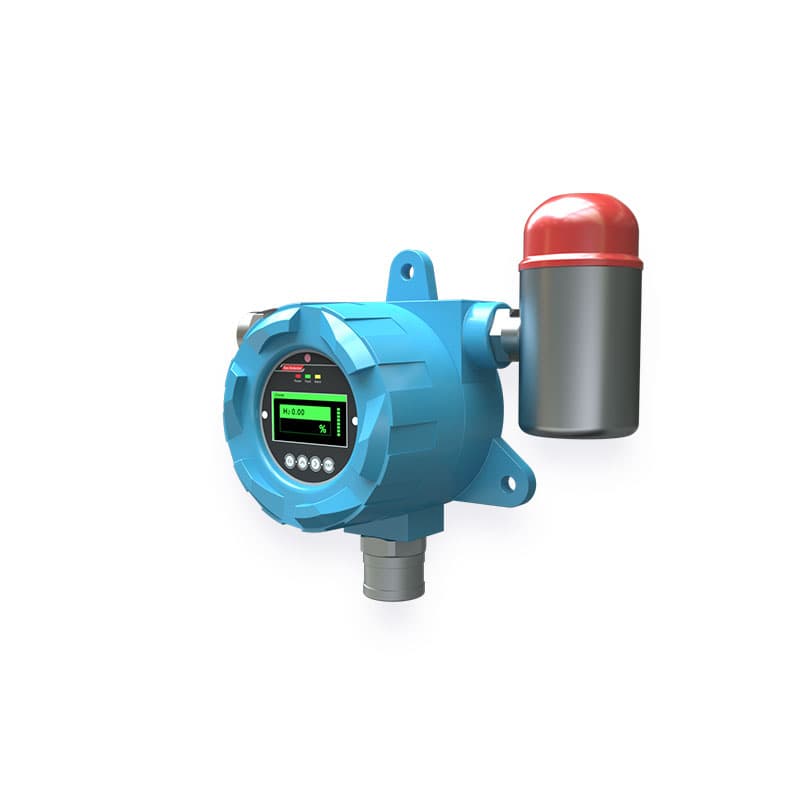

Built from the NA1000MR multi-channel alarm controller and the NA1000DII hydrogen monitoring transmitter for centralized fixed monitoring
Supports up to 16 transmitters for multi-point hydrogen concentration control and alarm management
Uses a large TFT256 color LCD to display real-time hydrogen concentration and alarm status across multiple channels
Provides dedicated sampling systems for generator neutral points, oil return systems, internal cooling water tanks, and other site-specific points
Uses all-metal explosion-proof transmitter housing with Ex ia IIC T4 Ga protection
Makes maintenance easier because the transmitter design allows replacement of core components during servicing
Technical Specifications
Product name
NA1000MS fixed hydrogen leak monitoring system
System composition
NA1000MR multi-channel alarm controller and NA1000DII hydrogen monitoring transmitter
Product type
Fixed multi-channel hydrogen leak monitoring and alarm system
Typical use
Centralized fixed hydrogen concentration monitoring for hydrogen-cooled generator units and other hydrogen operating points
Display
TFT256 color LCD
Input type
1 to 8 two-wire channels, 4 to 20 mA transmitters, up to 16 channels
Controller power consumption
24 V, less than or equal to 0.48 W
Connection method
2-core shielded cable
Output type
1 to 8 channels of 4 to 20 mA current output, up to 16 channels
Output impedance
Less than 750 ohm
Contact type
Normally open
Alarm output
1 to 16 branch alarms and 1 general alarm
Relay rating
1 A, 30 VDC or 1 A, 250 VAC
Alarm storage
8000 alarm records
Controller working voltage
210 to 230 VAC, 50/60 Hz
Installation
Wall-mounted
Controller dimensions
440 mm x 330 mm x 130 mm
Controller weight
9.5 kg
Transmitter detection range
0 to 4 %, 0 to 100 %LEL
Transmitter accuracy
Plus or minus 2% F.S
Sampling method
Natural diffusion
Ambient temperature
-10 to 50 C
Ambient humidity
0 to 98 %RH
Explosion-proof rating
Ex ia IIC T4 Ga
Transmitter working voltage
24 VDC, power less than 1 W
How It Fits Into a Complete Solution
The NA1000MS fits into a complete hydrogen safety solution as a fixed monitoring and alarm platform for centralized control. It can work together with portable leak detectors, hydrogen analyzers, and process monitoring equipment to create layered protection across hydrogen production, transfer, and power industry applications.
Industries
Power industry
Suitable for hydrogen-cooled generator units and other fixed hydrogen monitoring points in power plants.
Hydrogen production
Supports centralized hydrogen concentration monitoring in fixed production and handling areas.
Hydrogen transfer systems
Useful for fixed-point monitoring where hydrogen pipelines, interfaces, and transfer areas must be watched continuously.
Industrial process safety
Helps manage hydrogen safety in fixed operating zones that need alarm outputs and centralized supervision.
Equipment room monitoring
Suitable for internal cooling water tanks, oil return systems, and other equipment-linked hydrogen points.
High-standard projects
Supports applications that need stable fixed monitoring, alarm storage, and multi-point control.
FAQ
What is the NA1000MS used for?
The NA1000MS is used for fixed multi-point hydrogen concentration monitoring and alarm control in hydrogen-related operating areas.
Is the NA1000MS a portable detector?
No. The NA1000MS is a fixed monitoring system designed for centralized control of multiple monitoring points.
How many transmitters can the system support?
The system can support up to 16 hydrogen monitoring transmitters.
Where is the NA1000MS commonly used?
It is commonly used in hydrogen-cooled generator units, hydrogen system operating points, production areas, and fixed industrial hydrogen monitoring applications.
What explosion-proof rating does the transmitter have?
The transmitter is designed with an Ex ia IIC T4 Ga explosion-proof rating.
