RH-AQG-III Hydrogen Dryer
Third-generation hydrogen drying and humidity control for generator hydrogen systems, with purification support and three-tower adsorption design.
Overview
The RH-AQG-III third-generation hydrogen dryer uses an innovative three-tower structure with intelligent operating control. During normal operation, the three towers alternate between drying, standby, and regeneration states. When humidity becomes too high, the standby drying tower can be brought into operation immediately, helping the system adapt to different generator operating conditions. This design supports hydrogen humidity control, hydrogen purity improvement, and safer, more efficient hydrogen-cooled generator operation.
Key Applications
Hydrogen drying
Generator humidity control
Hydrogen purification support
Hydrogen-cooled generator systems
Online dew point management
Power industry hydrogen process support
Problems It Solves
Controls hydrogen humidity in generator systems where moisture affects operating safety and efficiency
Provides flexible drying capacity under changing generator humidity conditions
Improves hydrogen quality by supporting higher purity and lower micro-oxygen conditions
Reduces operating risk with intelligent regeneration, tower status indication, and fault diagnosis support
Key Features
Uses third-generation hydrogen drying technology for reliable and efficient humidity control within standard requirements
Supports hydrogen purification through membrane separation to raise hydrogen purity above 99%

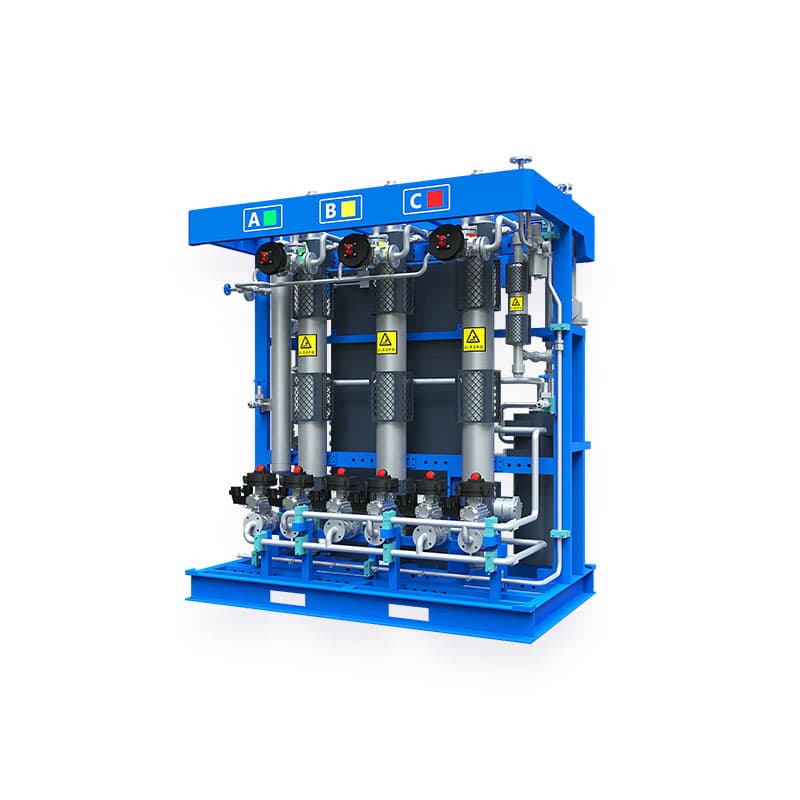

Uses a three-tower adsorption design with one tower drying, one tower regenerating, and one tower on standby
Equips each tower with two independent heaters, one duty and one standby, for long-term reliable operation
Uses intelligent heaters with star layout to raise internal tower temperature to 180 °C for faster adsorbent regeneration

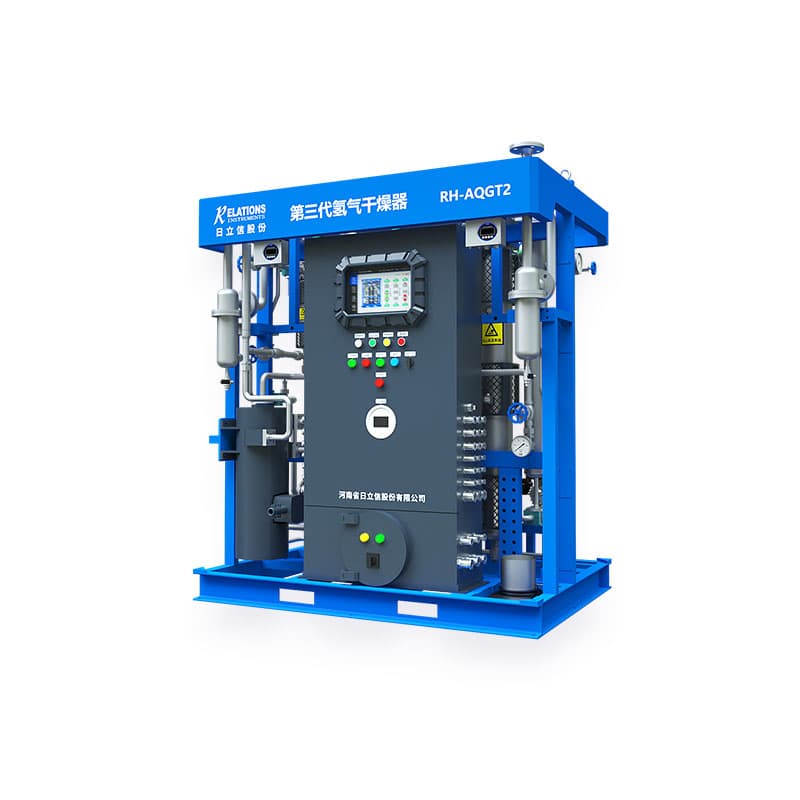

Provides tower state lights, multiple intelligent control modes, and fault diagnosis analysis functions
Technical Specifications
Product name
RH-AQG-III hydrogen dryer
Product type
Hydrogen drying and humidity control system
Hydrogen treatment capacity
100 m3/h (NPT)
Hydrogen dryer inlet/outlet dew point
10 / -30 to -15 °C
Cooling water inlet/outlet pressure
200 to 1000 kPa
Cooling water inlet/outlet temperature
Less than or equal to 38 °C
Gas dew point measurement range
-40 to +100 °C
Signal output
4 to 20 mA
Hydrogen dryer flange
DN40
Drain trap
Automatic drainage
Compressed air supply pressure
0.5 to 0.8 MPa
Explosion-proof rating
Electrical parts meet IIC T4 explosion-proof grade
Power supply
380 VAC, 50 Hz
Rated power
14 kW
How It Fits Into a Complete Solution
The RH-AQG-III fits into a complete hydrogen process solution as a drying, humidity control, and purification support system. It works together with purity analyzers, dew point analyzers, oxygen analyzers, and hydrogen monitoring systems to help maintain stable gas quality in hydrogen-cooled generator applications.
Industries
Power plants
Designed for hydrogen-cooled generator systems in power industry applications.
Generator humidity control
Supports fixed hydrogen drying and humidity control in generator hydrogen systems.
Hydrogen purification support
Useful where humidity control and hydrogen purity improvement must work together.
High-efficiency operations
Helps reduce windage loss and support safer generator operation through better gas condition control.
Intelligent process control
Suitable for applications that need automatic tower switching, regeneration, and fault analysis.
Critical hydrogen quality systems
Supports demanding hydrogen gas treatment tasks where moisture and purity matter together.
FAQ
What is the RH-AQG-III used for?
It is used for hydrogen drying, humidity control, and hydrogen purification support in generator hydrogen systems.
What is special about the RH-AQG-III design?
It uses a three-tower adsorption design with intelligent control and flexible response to changing humidity conditions.
Can it support hydrogen purification as well as drying?
Yes. It includes purification support that can help increase hydrogen purity above 99%.
Does it include automatic drainage?
Yes. It includes automatic drainage through a float-type drain trap arrangement.
Is it intended for power plant hydrogen systems?
Yes. It is designed for hydrogen-cooled generator applications in power plants.
