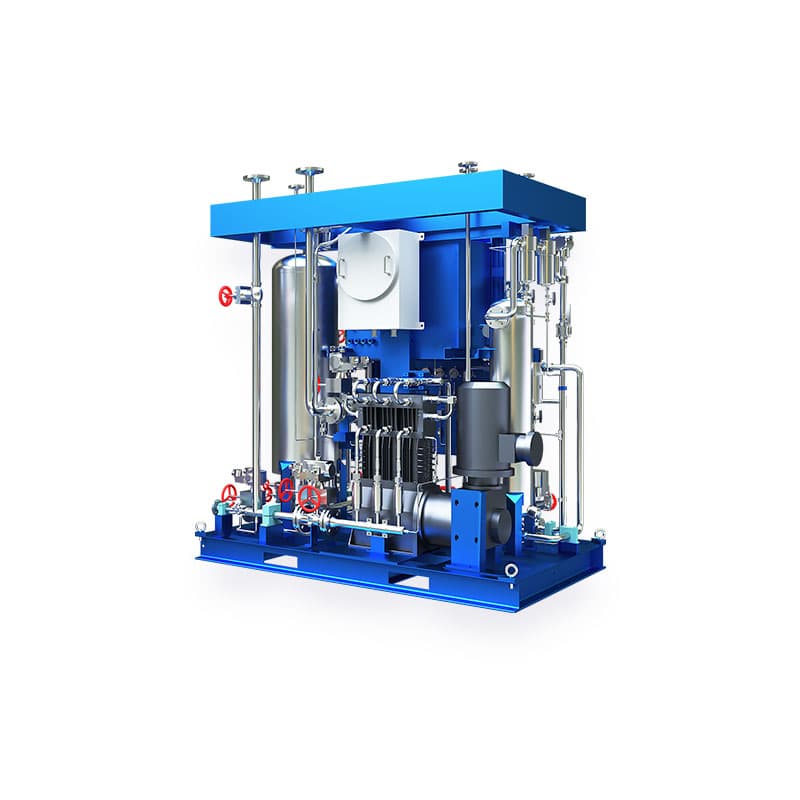

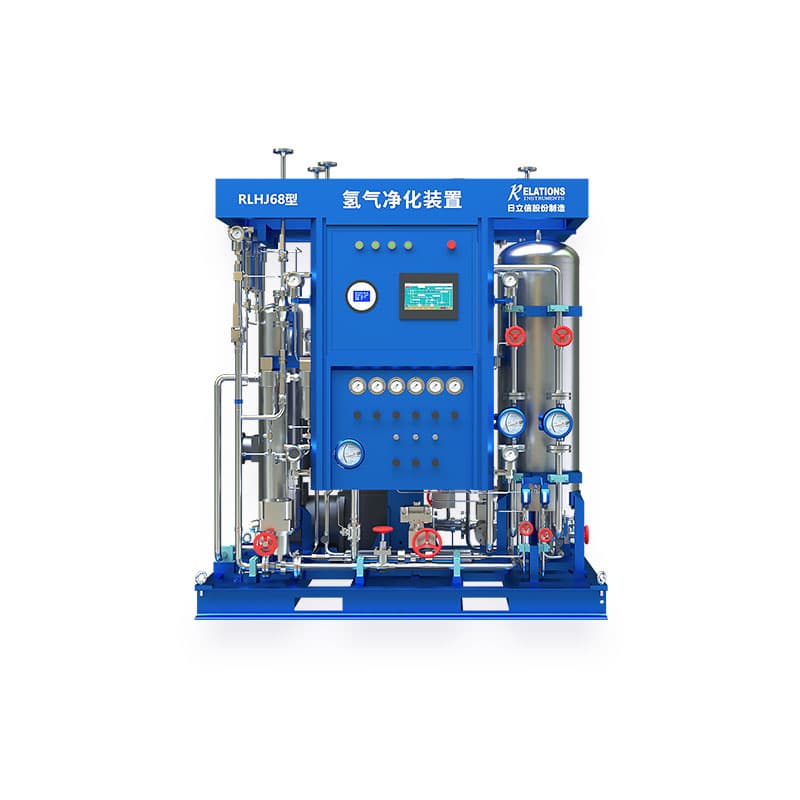

RLHJ68 Hydrogen Purification Unit
Hydrogen purification for separating oxygen, nitrogen, and carbon dioxide impurities while improving hydrogen purity in generator hydrogen systems.
Overview
The RLHJ68 hydrogen purification unit uses patented separation technology to remove impurity gases such as oxygen, nitrogen, and carbon dioxide from hydrogen. It is designed for hydrogen-cooled generator sites where the traditional purge-and-refill method does not maintain a high enough hydrogen purity level. By increasing hydrogen purity to 99% or above, it helps improve generator performance and supports safer and more efficient operation.
Key Applications
Hydrogen purification
Generator hydrogen purity improvement
Impurity gas separation
Hydrogen-cooled generator systems
Power plant efficiency support
Fixed hydrogen quality treatment
Problems It Solves
Removes oxygen, nitrogen, carbon dioxide, and other impurities from generator hydrogen systems
Helps sites that cannot maintain high hydrogen purity through purge-and-refill methods alone
Improves generator hydrogen purity to 99% or above for better operating efficiency
Supports safer and more reliable hydrogen process control with dedicated compression and automatic purity tracking
Key Features
Uses high-separation-coefficient, high-hydrogen-yield separation modules to remove impurity gases
Provides purified hydrogen with purity above 99%
Uses continuous pressure-difference-driven gas separation components for reliable operation
Offers long service life, with separation system life up to 10 years or more
Uses compact structure with smaller footprint and easier installation
Includes a zero-leak hydrogen-dedicated magnetic coupling compressor with long-life cylinder treatment and low maintenance needs
Technical Specifications
Product name
RLHJ68 hydrogen purification unit
Product type
Hydrogen purification and separation unit
Feed gas flow
60 m3/h
Inlet gas pressure
0.25 to 0.6 MPa
Generator purity improvement
At least 99%
Power supply
380 VAC
Power
9 kW
Dimensions
1870 mm x 1260 mm x 2165 mm
Weight
1500 kg
How It Fits Into a Complete Solution
The RLHJ68 fits into a complete generator hydrogen process solution as a purification and impurity separation unit. It works together with hydrogen compensation systems, hydrogen analyzers, dew point monitoring, and leak detection equipment to help maintain higher gas purity and safer generator operation.
Industries
Power plants
Designed for hydrogen-cooled generator systems that need higher and more stable hydrogen purity.
Generator efficiency improvement
Useful where hydrogen purity directly affects generator performance and operating loss.
Hydrogen quality treatment
Supports fixed separation and purification of hydrogen in generator-related systems.
Impurity gas removal
Suitable for applications where oxygen, nitrogen, and carbon dioxide must be removed from hydrogen.
High-purity hydrogen applications
Helps sites maintain hydrogen quality above the level achievable by purge-and-refill alone.
Long-life process equipment
Useful where long service life, precise control, and lower maintenance are important.
FAQ
What is the RLHJ68 used for?
It is used to separate impurity gases from hydrogen and improve hydrogen purity in generator hydrogen systems.
What impurities can it remove?
It can remove oxygen, nitrogen, carbon dioxide, and other impurity gases from hydrogen.
What purity level can it help achieve?
It is designed to raise generator hydrogen purity to 99% or above.
Does it use a dedicated hydrogen compressor?
Yes. It uses a zero-leak hydrogen-dedicated magnetic coupling compressor.
Who is this unit designed for?
It is designed for sites where traditional purge-and-refill methods are not enough to maintain high hydrogen purity.
