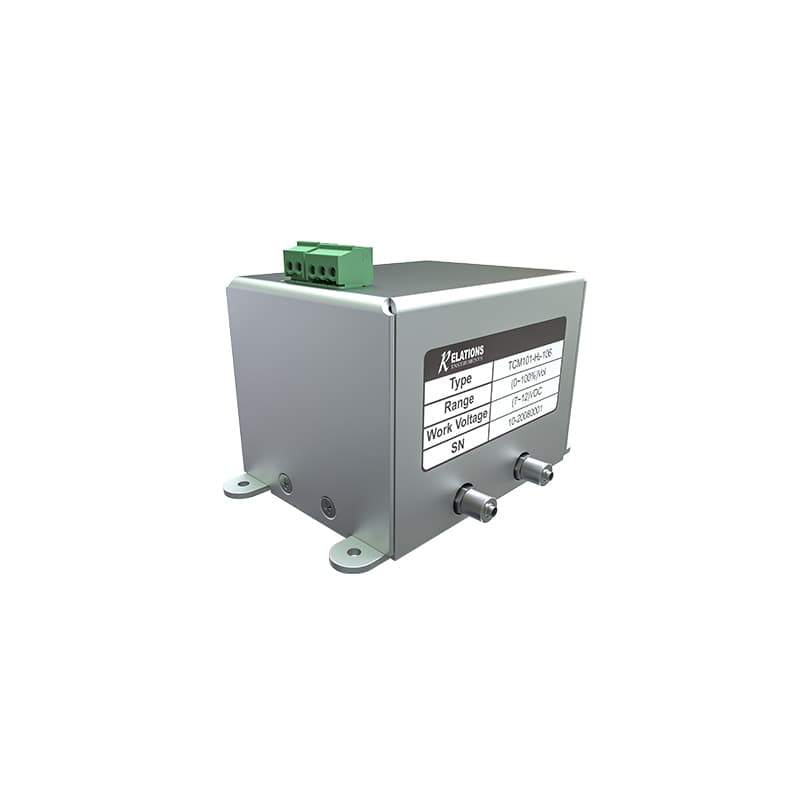

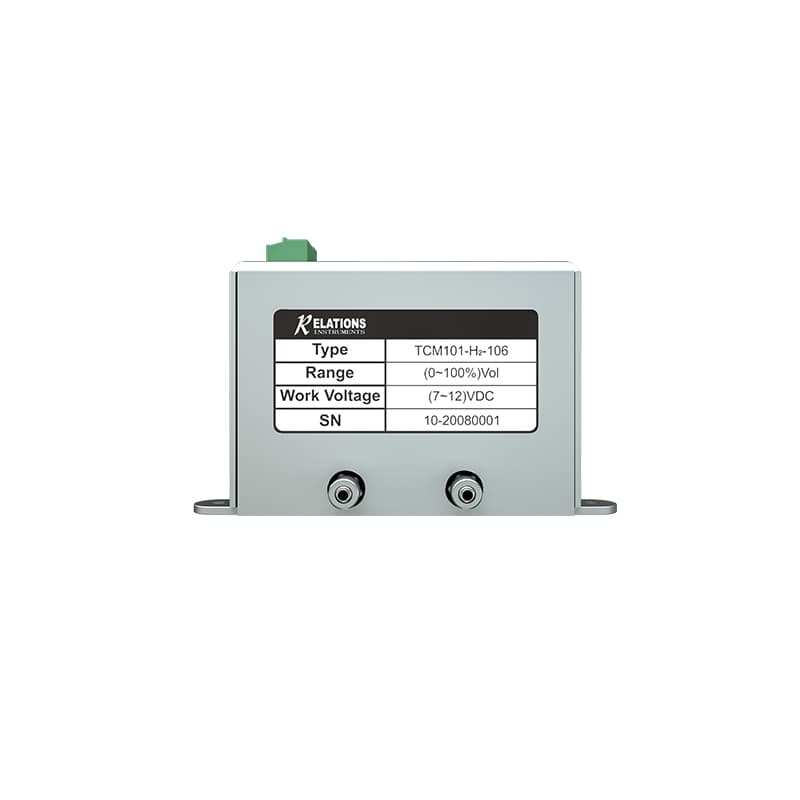

TCM101-H2 Hydrogen Purity Sensor
Compact hydrogen concentration sensing for hydrogen leak monitoring, integrated equipment, and industrial hydrogen applications.
Overview
The TCM101-H2 is a compact hydrogen purity sensor independently designed and developed by our team. It uses a MEMS-based miniature thermal conductivity sensor to measure single hydrogen concentration through the thermal conductivity relationship of binary mixed gases. It is widely suited for hydrogen generators, hydrogen refueling stations, compressors, energy storage, and industrial production environments where compact hydrogen leak monitoring is needed.
Key Applications
Hydrogen generators
Hydrogen refueling stations
Compressors
Energy storage systems
Industrial production equipment
Compact hydrogen monitoring points
Problems It Solves
Measures hydrogen concentration in compact equipment spaces where larger devices are difficult to install
Helps monitor hydrogen changes quickly in production, refueling, compression, and storage environments
Supports hydrogen leak sensing for equipment that needs continuous front-end concentration awareness
Improves flexibility where users need a compact sensor instead of a complete detector or analyzer unit
Key Features
Uses a self-developed MEMS-based miniature thermal conductivity sensor for hydrogen concentration measurement
Measures single hydrogen concentration through the thermal conductivity relationship of binary mixed gases
Supports a wide detection range and can cover hydrogen leak monitoring up to 10%Vol
Compact size makes it suitable for installation in narrow equipment spaces and integrated systems
Fast response helps users monitor hydrogen concentration changes in a timely way
Long-term reliability is designed for extended service life and stable operation
Technical Specifications
Product name
TCM101-H2 hydrogen purity sensor
Detected gas
Hydrogen gas (H2)
Product type
Compact hydrogen concentration and leak monitoring sensor
Typical use
Hydrogen concentration sensing and hydrogen leak monitoring for compact industrial and energy equipment
Detection principle
Thermal conductivity principle
Sampling method
Diffusion type
Detection range
(0.2 to 4) %Vol; (0.2 to 10) %Vol
Measurement accuracy
Plus or minus 5% F.S
Repeatability
Less than 2%
Resolution
0.01 %Vol
Preheat time
Less than 10 seconds
Response time
Less than 3 seconds
Working voltage
12 VDC, optional 24 VDC
Power consumption
Less than 1 W
How It Fits Into a Complete Solution
The TCM101-H2 fits into a complete hydrogen safety solution as a sensing-layer product. It can be integrated with fixed hydrogen detectors, hydrogen analyzers, alarm systems, and process monitoring equipment to provide early hydrogen concentration sensing inside broader hydrogen safety and control systems.
Industries
Hydrogen production
Suitable for concentration sensing and leak awareness in hydrogen generator systems and related equipment.
Hydrogen refueling
Useful for compact hydrogen monitoring points inside refueling-related equipment and systems.
Compression systems
Helps monitor hydrogen concentration in compressors and connected hydrogen handling equipment.
Energy storage
Supports hydrogen leak monitoring in storage-linked systems where compact installation matters.
Industrial production
Fits industrial equipment that needs a small hydrogen sensor for ongoing concentration detection.
Integrated OEM applications
Well suited for equipment makers that need a compact hydrogen sensing module in custom designs.
FAQ
What is the TCM101-H2 used for?
The TCM101-H2 is used for hydrogen concentration measurement and hydrogen leak monitoring in compact industrial and energy applications.
Does the TCM101-H2 need a reference gas?
No. It is positioned as a sensor that does not require reference gas for its measurement approach.
What sensing principle does the TCM101-H2 use?
It uses a thermal conductivity sensing principle based on a MEMS miniature sensor design.
Where can the TCM101-H2 be installed?
It can be installed in hydrogen generators, refueling stations, compressors, storage systems, and other compact equipment spaces.
Is the TCM101-H2 a complete detector or a sensor component?
It is a sensor product intended for hydrogen sensing and integration, rather than a complete portable or fixed detector instrument.
