PDM300 Industrial Hydrogen Concentration Sensor
Industrial hydrogen concentration sensing for online process monitoring in complex, high-temperature, high-humidity, and oxygen-free hydrogen environments.
Overview
The PDM300 industrial hydrogen concentration sensor uses the strong hydrogen selectivity of palladium alloy to enable hydrogen detection under complex industrial process conditions. It offers good selectivity, no cross-interference, no need for oxygen to participate in the sensing reaction, and long service life. Its technical advantage is especially strong in harsh process environments, because it can detect hydrogen accurately and reliably in saturated water vapor, is not affected by condensed water, and can even tolerate liquid water immersion.
Key Applications
Natural gas hydrogen blending
Ammonia cracking hydrogen production
Methanol hydrogen production
Online industrial hydrogen process monitoring
High-temperature hydrogen environments
High-humidity hydrogen detection
Problems It Solves
Detects hydrogen in complex industrial process conditions where strong selectivity and low cross-interference are important
Supports hydrogen monitoring even in oxygen-free environments where some conventional sensing methods may be limited
Helps users monitor hydrogen reliably in high-temperature and high-humidity process applications
Improves online hydrogen process visibility for industrial hydrogen production systems
Product Advantages
Flexible range configuration
Supports industrial hydrogen concentration monitoring with customizable range selection based on actual process requirements.
High hydrogen selectivity
Offers strong selectivity for hydrogen and avoids cross-interference from other gases in mixed industrial environments.
Harsh-environment tolerance
Suitable for demanding hydrogen applications involving heat, humidity, saturated vapor, and condensation-prone operating conditions.
Long service life
Uses non-consumable core components and is designed for long-term use with service life up to 10 years.
In practical use, these advantages make the PDM300 a better fit for hydrogen process lines that need stable online sensing, strong gas selectivity, and dependable performance in moisture-heavy or oxygen-free conditions.
Key Features
Uses a palladium alloy thin-film sensing principle with strong hydrogen selectivity and no cross-interference from other gases
Supports hydrogen detection without oxygen participation in the sensing reaction
Can work accurately and reliably in saturated water vapor and is not affected by condensation water
Can even tolerate immersion in liquid water in demanding process environments
Supports customizable hydrogen concentration range selection for process needs
Uses non-consumable core components for long service life up to 10 years
Technical Specifications
The core sensing, electrical, and installation parameters are summarized below for easier review. The original parameter images have been converted into a cleaner table and supporting text so the page stays easier to scan.
Product name
PDM300 industrial hydrogen concentration sensor
Detected gas
Hydrogen gas (H2)
Product type
Industrial online hydrogen concentration sensor
Detection principle
Palladium alloy thin-film principle
Range
0 to 20 %Vol, customizable
Measurement error
Plus or minus 2% F.S
Repeatability
Less than 2%
Preheat time
Less than 5 s
Sampling method
Pipeline type
Working voltage
12 VDC
Power consumption
Less than 1 W
Signal output
RS-485 or 4 to 20 mA
Operating temperature
-40 to 70 C
Storage temperature
-40 to 105 C
Service life
10 years
Response time
Less than 30 s
Dimensions
142 mm x 43 mm x 43 mm
Weight
165 g
Sensing principle
Palladium alloy thin-film sensing supports hydrogen concentration monitoring with oxygen-free detection behavior.
Process integration
Pipeline-type installation with RS-485 or 4 to 20 mA output makes the sensor easier to connect with plant monitoring and control systems.
Operating fit
Low power demand, fast preheat, and strong environmental tolerance support long-term fixed use in industrial hydrogen applications.

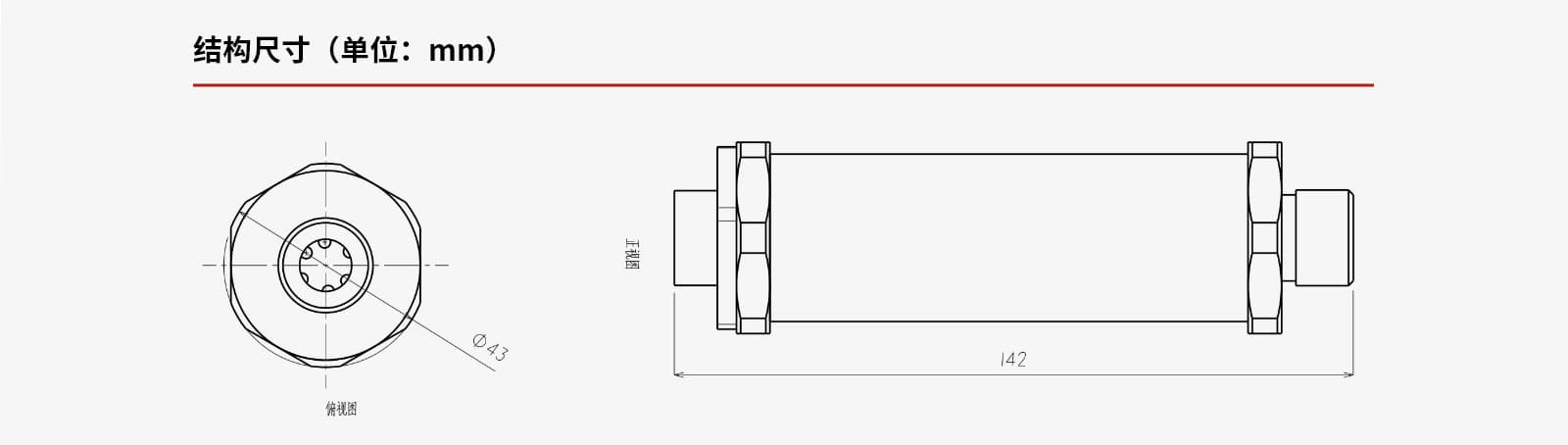

Dimensions
The PDM300 uses a pipeline-type structure with a compact cylindrical body. Based on the dimension drawing, the overall size is about 142 mm x 43 mm x 43 mm, which makes it suitable for fixed industrial process integration where inline hydrogen sensing is needed without taking much installation space.
Overall size
142 mm x 43 mm x 43 mm
Structure type
Compact inline pipeline body
Integration
Designed for fixed industrial process installation
How It Fits Into a Complete Solution
The PDM300 fits into a complete hydrogen solution as an industrial sensing-layer product for online process monitoring. It can be integrated with fixed hydrogen leak monitoring systems, hydrogen analyzers, process control units, and safety alarm systems to provide front-end hydrogen concentration data in demanding industrial hydrogen environments.
Industries
Natural gas hydrogen blending
Suitable for online hydrogen concentration monitoring in blended gas process environments.
Ammonia cracking hydrogen production
Useful for industrial hydrogen monitoring in ammonia cracking process systems.
Methanol hydrogen production
Supports online hydrogen process monitoring in methanol reforming and hydrogen generation applications.
Industrial hydrogen process control
Fits fixed online hydrogen monitoring tasks in process systems where oxygen-free detection matters.
High-humidity hydrogen environments
Performs reliably in saturated water vapor and condensation-prone conditions.
High-temperature industrial systems
Suitable for harsh process conditions where stronger environmental tolerance is required.
FAQ
What is the PDM300 used for?
The PDM300 is used for industrial online hydrogen concentration monitoring in complex process environments.
Can the PDM300 detect hydrogen without oxygen?
Yes. One of its key advantages is hydrogen detection in oxygen-free environments.
What makes the PDM300 suitable for harsh process conditions?
It offers strong selectivity, no cross-interference, high-temperature and high-humidity tolerance, and resistance to condensation effects.
What outputs does the PDM300 support?
It supports RS-485 and 4 to 20 mA signal output options.
What is the sensing principle of the PDM300?
It uses a palladium alloy thin-film sensing principle for hydrogen concentration detection.
