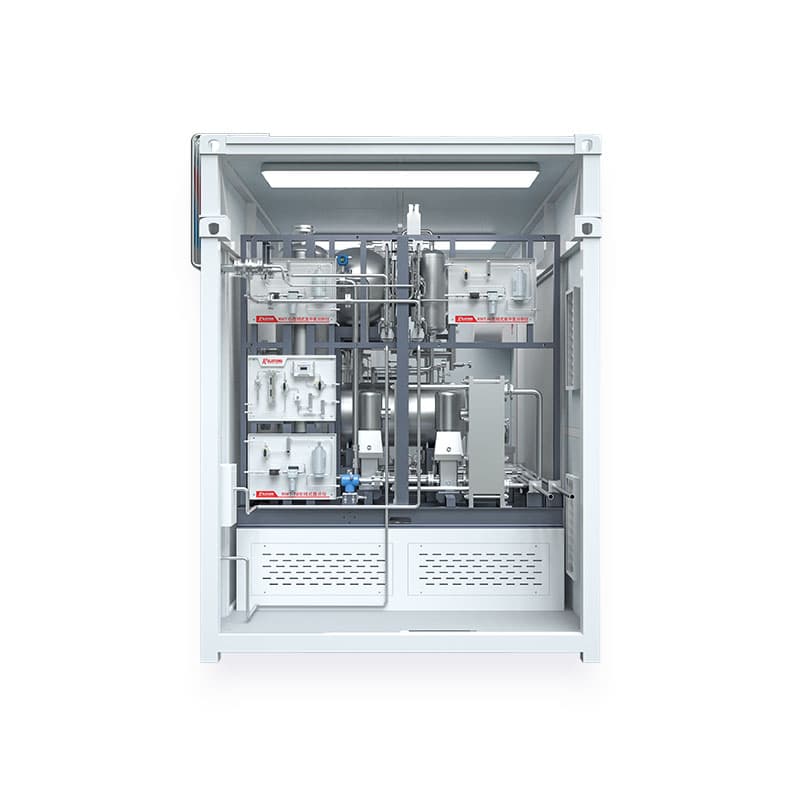

PEM Water Electrolysis Hydrogen Generation System
Modular PEM hydrogen production for high-purity hydrogen output, fast renewable energy response, and scalable on-site clean hydrogen applications.
Overview
This PEM water electrolysis hydrogen generation system is an independently developed clean hydrogen production package that combines power supply, pure water treatment, control, electrolysis, cooling, purification, and main process modules. It uses TSA purification together with oxygen and moisture removal to help meet high hydrogen purity and humidity control requirements. The result is a scalable green hydrogen solution for users that need local, high-purity hydrogen output with flexible project sizing.
Key Applications
Research and teaching hydrogen supply
Industrial on-site hydrogen generation
Renewable energy coupled hydrogen production
Fuel cell grade hydrogen supply
Low-carbon industrial parks
Modular containerized hydrogen projects
Problems It Solves
Provides on-site hydrogen generation where users need high-purity hydrogen without depending on bottled gas logistics
Helps renewable energy projects handle fluctuating power input with fast system start-stop and load response
Improves hydrogen quality control through integrated purification, deoxygenation, and dehumidification support
Reduces project complexity with modular design for easier transport, expansion, and maintenance
Key Features
Uses PEM pure water electrolysis technology for efficient and clean hydrogen generation
Includes power supply, pure water, control, electrolysis, cooling, purification, and main system modules
Uses TSA purification together with oxygen and moisture removal to support high hydrogen purity output
Supports fast start and stop behavior and good adaptation to changing renewable power conditions
Uses modular and compact design for scalable installations from small research units to large containerized systems
Supports green hydrogen production with no harmful emissions during the electrolysis process
Core Technical Specifications
Technology
PEM water electrolysis hydrogen generation
Hydrogen output purity
99.999%, with hydrogen purification
Outlet pressure
1.6 MPa or 3 MPa, 16 bar or 30 bar
Operating range
10 to 100%
DC power consumption
4.5 kWh/Nm3
Capacity range
0.5 to 200 Nm3/h
Available Configurations
Research and Teaching Models
Compact PEM hydrogen generation packages for laboratory, research, and teaching use.
Model
RHP-H-0.5, RHP-H-1, RHP-H-2
Hydrogen production capacity
0.5 Nm3/h, 1 Nm3/h, 2 Nm3/h, or about 8, 16, and 33 L/min
Outlet pressure
1.6 MPa or 3 MPa, 16 bar or 30 bar
Hydrogen purity
99.999%, with hydrogen purification
Operating range
10 to 100%
DC power consumption
4.5 kWh/Nm3
PEM system dimensions
1200 mm x 800 mm x 1800 mm, L x W x H
Hydrogen control system dimensions
800 mm x 600 mm x 1800 mm, L x W x H
Industrial Site Models
Mid-scale PEM systems for industrial sites that need local hydrogen production and stable high-purity output.
Model
RHP-H-5, RHP-H-10
Hydrogen production capacity
5 Nm3/h, 10 Nm3/h
Outlet pressure
1.6 MPa or 3 MPa, 16 bar or 30 bar
Hydrogen purity
99.999%, with hydrogen purification
Operating range
10 to 100%
DC power consumption
4.5 kWh/Nm3
Cabinet dimensions
2400 mm x 1800 mm x 2000 mm, L x W x H
Large Low-Carbon Park Models
Large PEM hydrogen systems for industrial parks and larger clean energy infrastructure projects.
Hydrogen production capacity
100 Nm3/h, 200 Nm3/h
Outlet pressure
1.6 MPa or 3 MPa, 16 bar or 30 bar
Hydrogen purity
99.999%, with hydrogen purification
Operating range
10 to 100%
DC power consumption
4.5 kWh/Nm3
PEM system dimensions
40-foot standard container, 12000 mm x 2400 mm x 2600 mm, L x W x H
Hydrogen control system dimensions
20-foot standard container, 6000 mm x 2400 mm x 2600 mm, L x W x H
How It Fits Into a Complete Solution
This PEM system fits into a wider hydrogen solution as the hydrogen generation core. It can work together with hydrogen drying and purification units, process monitoring systems, leak detection and alarm equipment, storage packages, and downstream hydrogen use applications.
Industries
Green hydrogen projects
Suitable for clean hydrogen generation projects that pair PEM technology with renewable electricity.
Fuel cell hydrogen supply
Provides high-purity hydrogen output suitable for fuel cell related uses and hydrogen quality sensitive applications.
Industrial plants
Supports on-site hydrogen generation for users that need local production and reduced gas delivery dependence.
Research and education
Useful for compact hydrogen generation systems in teaching, testing, and research environments.
Containerized energy projects
Fits modular container-based deployments for larger integrated hydrogen infrastructure work.
Low-carbon industrial parks
Supports scalable hydrogen production in larger decarbonization and clean energy demonstration projects.
FAQ
What is this PEM system used for?
It is used for producing high-purity hydrogen from pure water through PEM electrolysis in research, industrial, and clean energy applications.
What hydrogen purity can it provide?
The stated hydrogen purity is 99.999% when hydrogen purification is included.
What output capacities are available?
The product information covers capacities from 0.5 Nm3/h up to 200 Nm3/h depending on the selected model.
Can it work with renewable energy?
Yes. The product description specifically highlights fast response and good adaptation to variable renewable energy inputs such as wind and solar.
Is the system modular?
Yes. The design is modular, which helps with scaling, maintenance, transport, and project expansion.
